My nerves were shot but I am halfway home. Taking a break and posting here. There's 22 photos already in the album . These are only from the rear strap button area. Taking the request from a member here, I took photos to document this project .

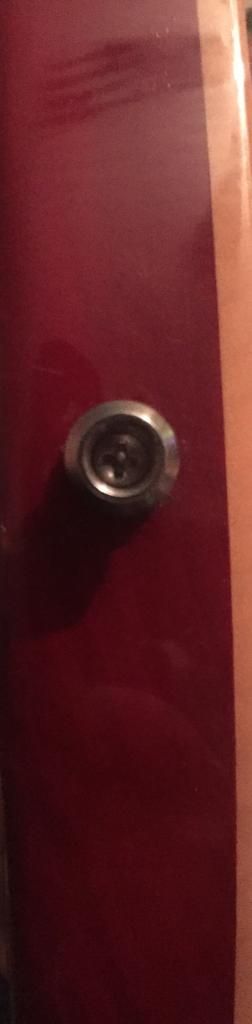

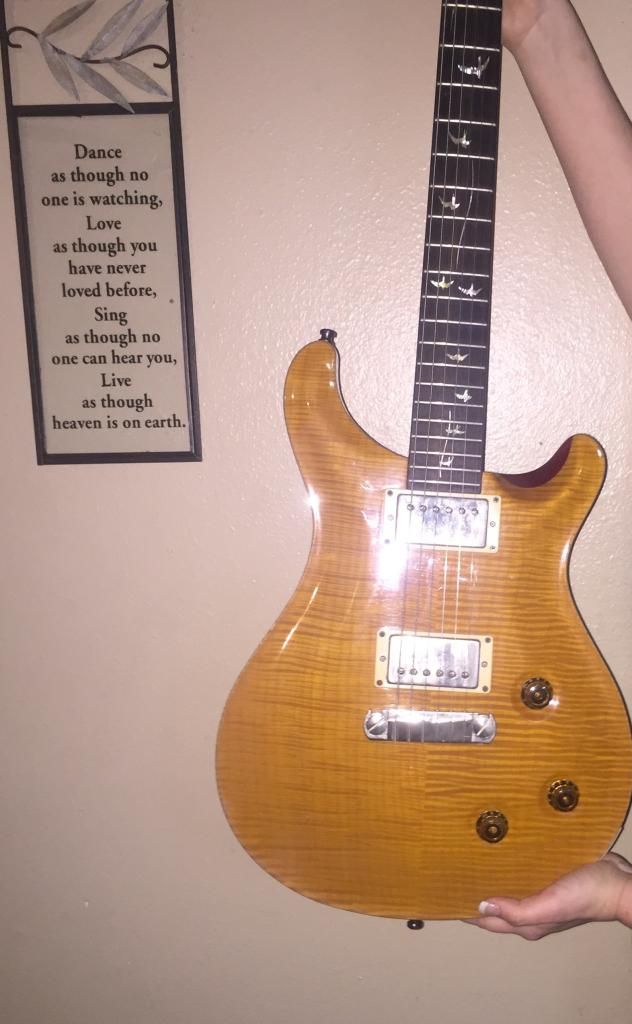

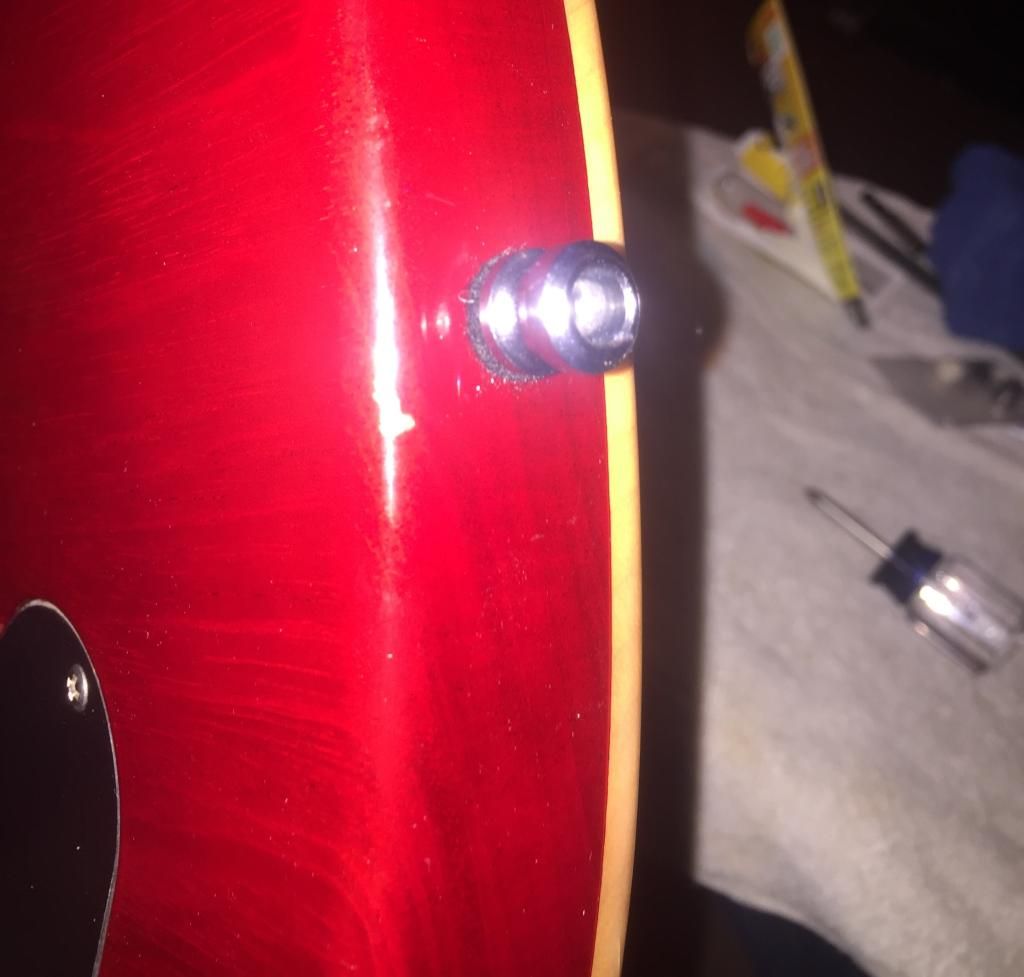

For those who didn't see my NGD thread , here is my 2005 20th CU22. Bought it used and the strap buttons were removed and replaced with some serious course thread ,hex head wood bolts.
I removed the bolts and decided to drill out the holes even bigger (yikes) and plug with an Oak dowel , glue in then redrill a pilot for the normal schaller strap lock.
Picked up a stick of 3/8's oak dowel , titebond II, and some masking tape. Time to get started.
Watched a youtube video and it suggested running drill backwards to start with to protect the laquer finish from flaking or lifting. So I did. Then drilled in. My drill bit depth gauge/stopper was giving me fits. So I opted for tape.

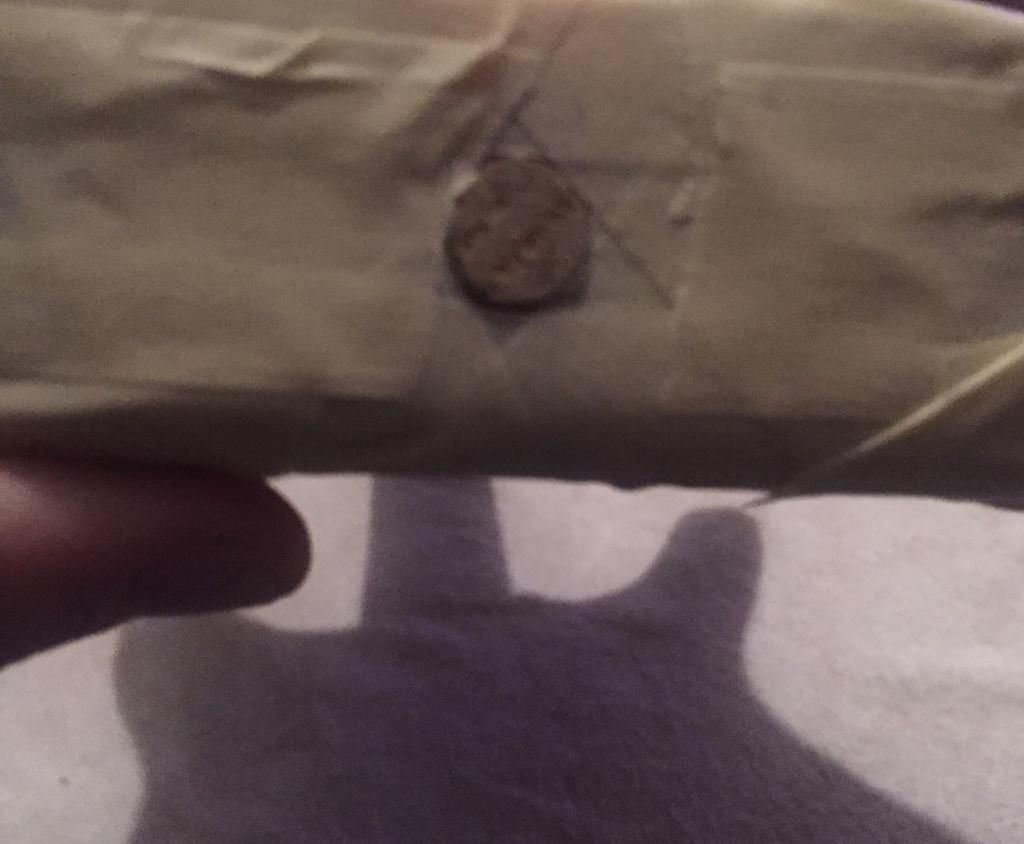

Taped off the area around it for damage control : (feels like surgery)
Here goes nothin! I'm not a wood worker in the least. Never done anything like this. Flying by the seat of my pants with a little help from reading forums and YouTube. Started same size has original hole and worked up .

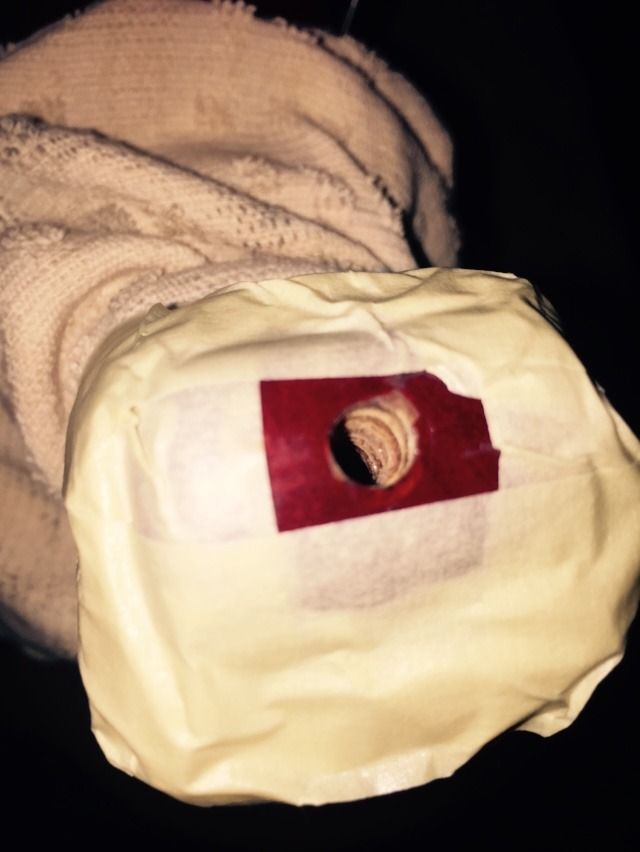

first hole : now to step up .

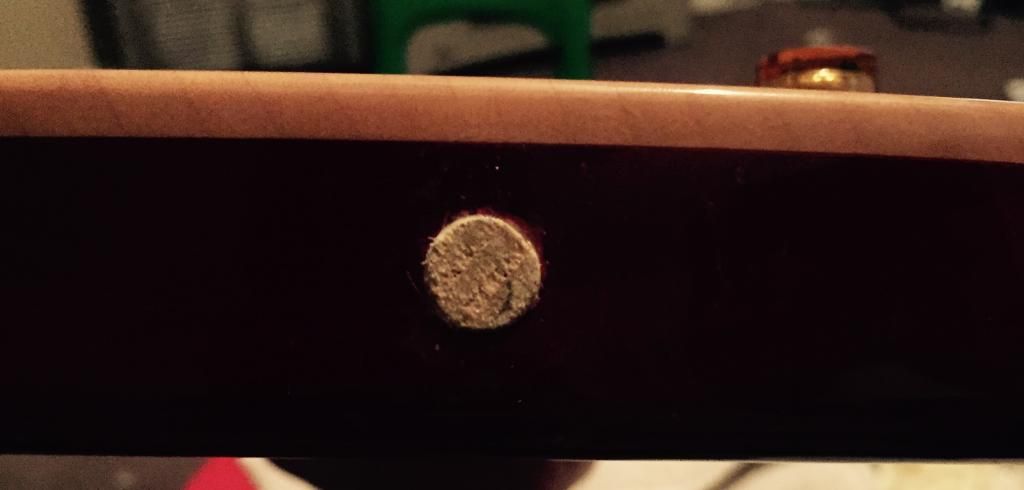

Made it to the big boy! The final 3/8's hole. Dowel fits snug(ish) lets glue it and see!

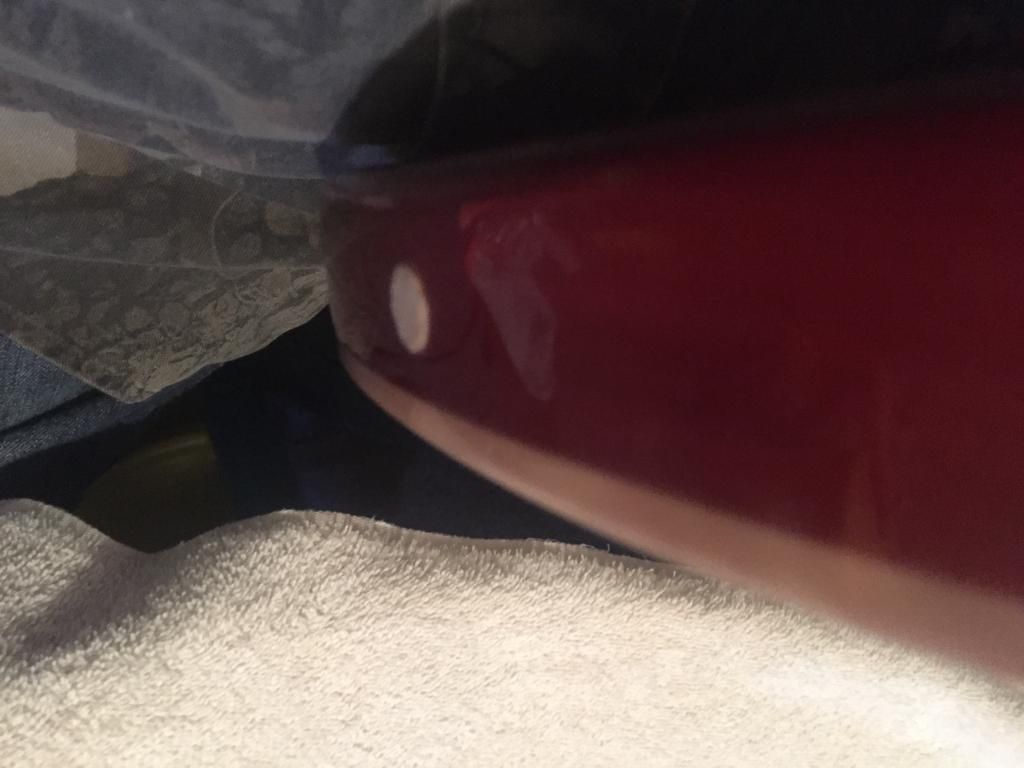

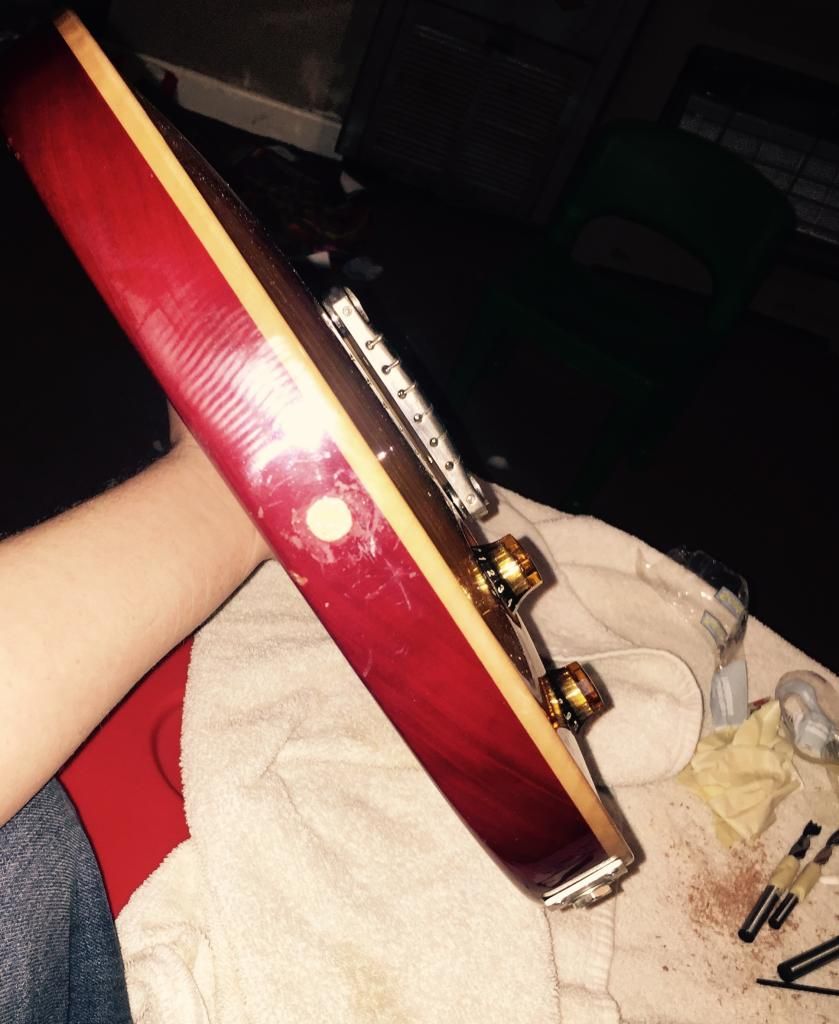

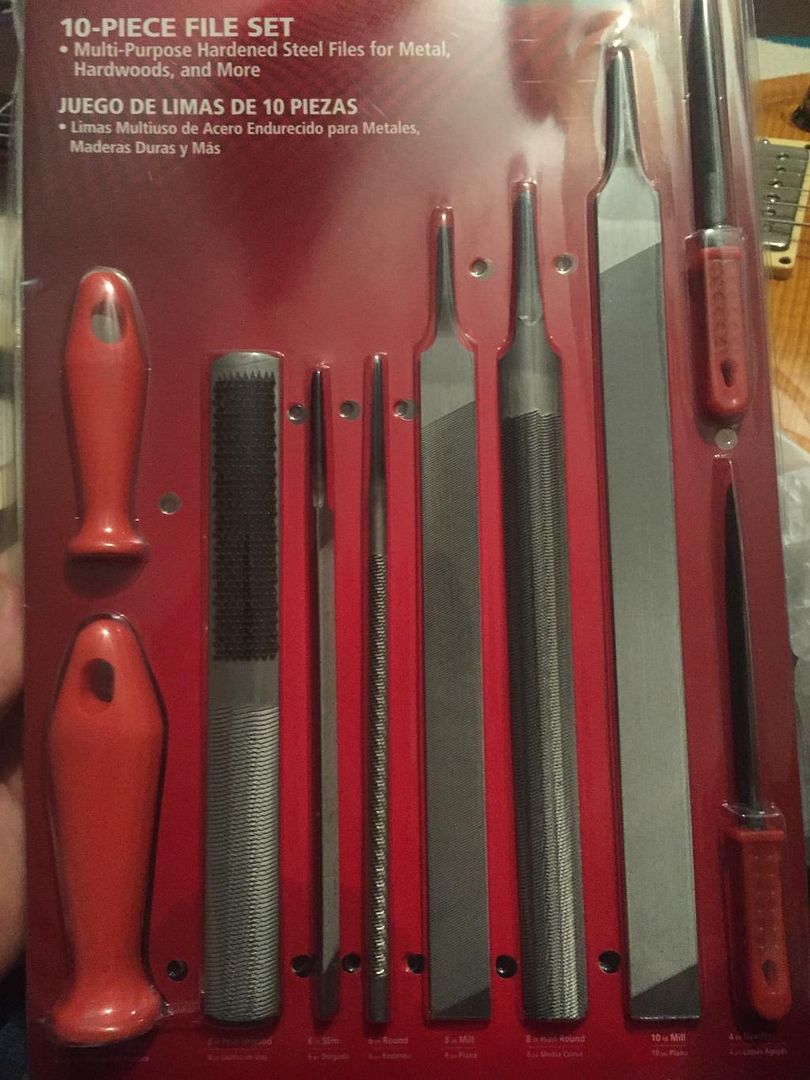

sure hope it works! Letting it sit for a while before I go any further with cleaning it up . It's not flush as originally intended I may tape it back off and try to file it. Or just drill it for strap locks as is.
Will post more pictures in the album's link here:
