Reviving my Archtop II

Discussion in 'Electric Instruments' started by Mad, Jul 4, 2021.

  1. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34
    Two things before I truly ramble. Archtop is home for the week while we summer so pics will follow. There is gonna be a lot of unnecessary wordage here. I’m gonna say a lot to ask some simple questions. I am also aware of how unnecessary this is, and yet, here we are…

    So,
    I’ve owned this lovely Archtop II since 98-99 (details are a little hazy on the exact timing) I traded a beautiful albeit neck heavy swamp ash special for it. Best deal ever.

    Trouble is, it kept getting farther away. As time went on, it wasn’t what I reached for. It was too nice for the space or too refined a sound. Such a woody resonant lively guitar but not something I was strapping to my sissybar.

    Been collecting parts for a beater Les Paul project. Don’t know why I’d need a beater though. Despite the reasons for not playing the ATII as much, the truth was, I was playing more while my kids set the dinner table than some 3am psychedelic swirl the Friday before Halloween. You need the right tool for the right job. So I was planning a Les Paul build (stratosphere is just ridiculous for tinkerers like me)

    Trading Harley parts for pickups/capacitors/etc…

    Just filling the treasure chest

    Pat. #/Wolfetone/Wizz/Ants/T-Tops

    and the Guitar Center exclusive Trad Pro V goes on blowout…

    so I start shifting from “I’m gonna build a Paul,” to “I like wine red. I do.”

    But I get this nagging thought

    That Archtop is ten time the guitar any Paul you build will be

    so out of the case the PRS comes

    Seven hours later…

    Yeah, there’s no Paul project planned anymore…

    One of the reasons I didn’t play the AT live as much? No separate Vol/Tone

    The ability to dial in three tones on the guitar face with different dynamics and voices available?

    I kinda need that.

    same thing with the pickups. I like the AT pickups but this stash of pickups I’ve procured really needs a run in this guitar

    I’d like to run concentrics wired 50’s style with low output PAFs/PAF clones

    but I don’t know if I can run CTS stacked 500k potentiometers through the AT top? They are supposedly for pick guards only. Anyone seen them in an AT or HB? Anyone run concentrics in either? Any thoughts on running throbaks in an AT? Anything to worry about?

    what about bridges?
    I’ve done so many Nashville bridge mods (maple flame/faber/callaham) is there a wider variety of adjustable stop tails? Anything odd? Nylon?Titanium?

    see, you got me monologuing…

    dogrocketp likes this.
  2. veinbuster

    veinbuster Zombie Three, DFZ

    Joined:
    Apr 26, 2012
    Messages:
    12,982
    Likes Received:
    22,416
    I got an Archtop in that same timeframe and don’t play it all that much. Not that it isn’t a good guitar, but my hollowbody is more comfortable and has a piezo.

    Not sure about mods.

    Mad likes this.
  3. RedGuitars

    RedGuitars Thread killer

    Joined:
    Apr 26, 2012
    Messages:
    1,468
    Likes Received:
    1,740
    Y’all wasting Archtop’s need to let a fella know….

  4. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34
    Ha!
    Waste might be the wrong word but that’s not far off. I legit treated this guitar just too preciously. When I played with people I loved, I brought this guitar. Just curious about my ability to add separate vol and tone and whether my 62 patent sticker pickup is worth tossing at the Archtop.

    Moondog Wily likes this.
  5. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34
    So back to the questions…

    1) anyone run CTS stacked 500k potentiometers? Issues with top thicknesses?

    2) any a/b comparisons with the Mann adjustable bridge? Any other bridges available? I know what steel and titanium can do to frequency response across the sweep so if there are options there I may not have seen, elucidate me.

    3) Pickups have me pondering… I have PAF options including an actual Pat#. Part of me is intrigued by the Throbak DS-55 - has a real clarity to it that could be too much in such a vibrant guitar.

  6. Herr Squid

    Herr Squid I was severely impressed

    Joined:
    Aug 19, 2012
    Messages:
    1,858
    Likes Received:
    3,693
    RickP likes this.
  7. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34
    Oh,
    I love this Archtop. I don’t want anything else in terms of playability and feel. But alone in my room, left to my own devices, I might fancy myself a little bit Freddie King. I’d like some of that Beano bite. I can pull the harness from the Archtop without touching a solder joint. Same with the bridge. I’m only looking to do things that are easily reversible and improve the dynamics of an already insanely dynamic guitar. As I said, I’m a tinkerer. This guitar has been in my hands 20+ yrs and I’ve only changed the strings

    bodia and Moondog Wily like this.
  8. LSchefman

    LSchefman Hears Tones

    Joined:
    Apr 26, 2012
    Messages:
    27,447
    Likes Received:
    32,214
    Never change the strings!


    OK, just kidding. I've had great luck experimenting with different strings. Currently, I'm playing pure nickel wrap (not plated nickel) Sono-Tone Vintage, and love what they're doing with every guitar I put them in.

    Of course, we're all different, so YMMV.

  9. AaeCee

    AaeCee New Member

    Joined:
    Apr 27, 2012
    Messages:
    767
    Likes Received:
    913
    Sounds like you may want what I do for my Archtop Jazz ... a set of rare 53/10 pickups. The best humbucker PRS ever made IMO, they were built to capture somewhat of a P-90 bite, and be very close to original 59 PAFs in output and tonal range.

    The good news is that I tracked down a NIB set which I'll soon have the PTC install in my Archtop. :) The bad news is that they've become almost impossible to find. :(

    Mad likes this.
  10. Moondog Wily

    Moondog Wily Howlin' At The Moon!

    Joined:
    Feb 12, 2021
    Messages:
    1,303
    Likes Received:
    2,608
    I believe it was Eric Clapton who said about strings "The rock n' roll is in the dirt"!

    Tucson Thump and Mad like this.
  11. vchizzle

    vchizzle Zomb!e Nine, DFZ

    Joined:
    Apr 28, 2012
    Messages:
    7,794
    Likes Received:
    6,641
    I’m gonna go out on a limb and say not many here went down the rabbit hole of concentric pots on this specific guitar. I do feel your pain though as that has greatly limited many purchases for me. I know it’s maybe not ideal since you want to tinker, but maybe reaching out to PTC would help. They may be able to help with the what will fit/not fit aspect. On the other hand, maybe they won’t be much help since they are the PRS mod squad. People tell them what they want, send in guitar, PTC makes it happen. Who knows, maybe someone here can give you more info. Might just take some time.

  12. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34
    PTC is in this guitar’s future. Little bit of clouding in the poly finish in a few spots. And I like the 53/10’s. I usually start with Antiquities and play with magnets until I get the sound I like. Been going back to A3 neck and A4 bridge Greenie phased for a while — the stock antiquity output seems to be the right output for hearing the magnets. Ants get buckers 98.9% of the way there. I’ve got a Pat. # pickup I may throw in the neck. Just want to be able to dial them in correctly (50’s wiring and two vol/two tone)

    More I think about it, I may grab some concentrics, measure the bushing and hole depth and go from there. I just figured someone had to have done it. ATs may not be that prevalent but HBs kinda are.

    #12 Mad, Jul 6, 2021
    Last edited: Jul 6, 2021
    veinbuster likes this.
  13. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34
    I mean, Jamie Jamerson legit never changed the strings on the Funk Machine…

    Moondog Wily likes this.
  14. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34
    Did some testing today. Settled on a pickup setup I’m pleased with. Antiquity in the neck and Wolfetone Legend in the bridge. Emerson .022 caps and the CTS concentrics. I’ll probably have to test and return a few. I’d like 550k but I definitely don’t want 460k. Ebony surrounds for some sharpness. I’ll run jazz bass knobs until I’m sure this will work then I’ll upgrade them to match the rest. Still contemplating a Mann adjustable bridge. The Mann is in New Hampshire so maybe I’ll take a trip down 89…

    pics soon(ish)

    bodia, veinbuster and DISTORT6 like this.
  15. bodia

    bodia Authorities said.....best leave it.....unsolved

    Joined:
    Jan 21, 2015
    Messages:
    27,362
    Likes Received:
    48,992
    Sounds awesome.

    Mad likes this.
  16. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34

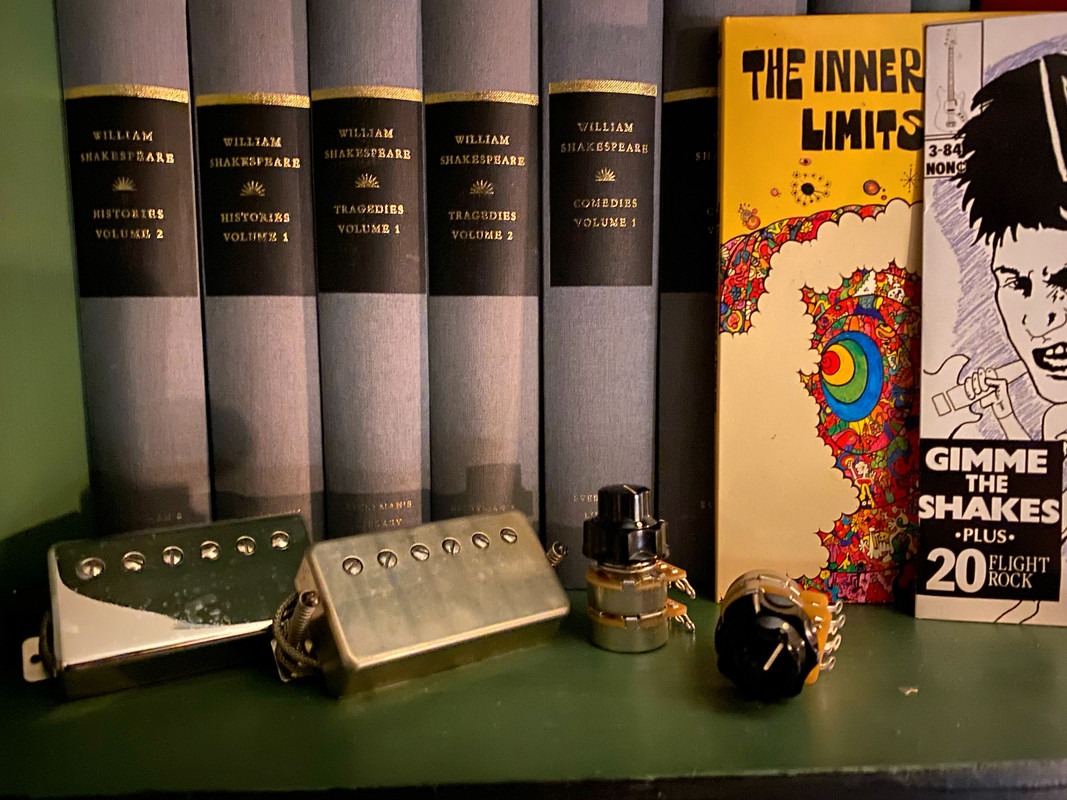

    [​IMG]

    Still working on parts collecting

  17. Mad

    Mad New Member

    Joined:
    Jul 3, 2021
    Messages:
    18
    Likes Received:
    34

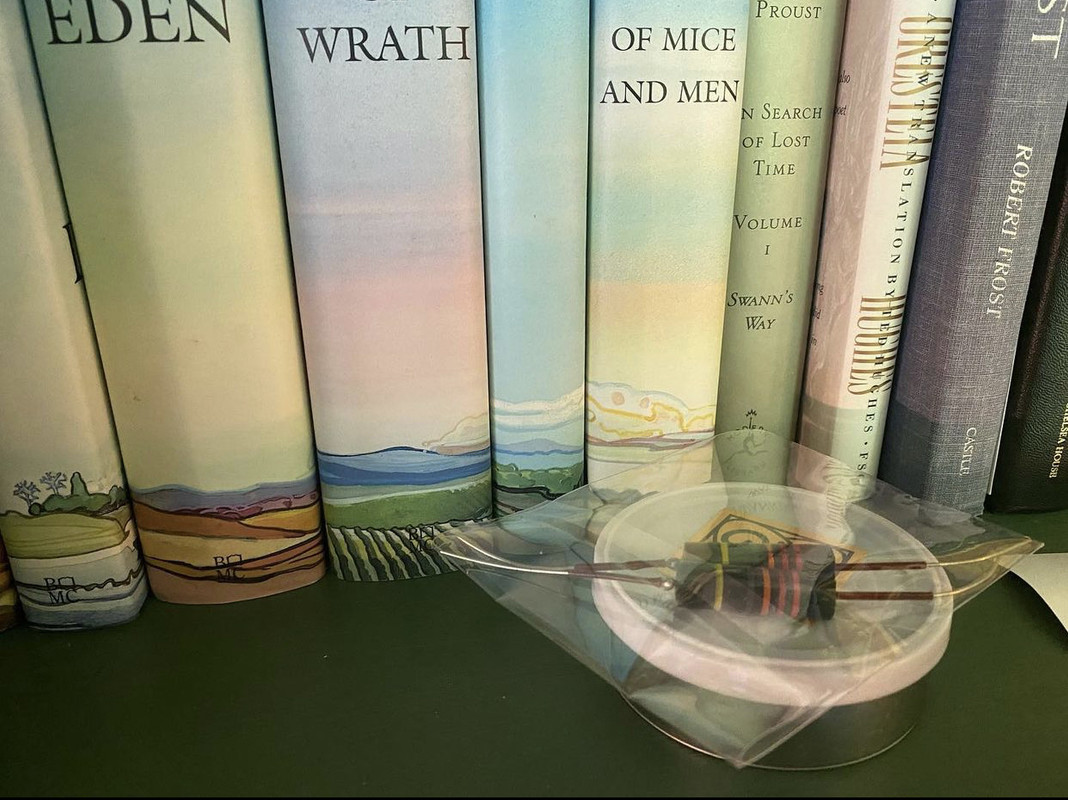

    Luxe Radio

    [​IMG]

    aphantomvaper likes this.
  18. Kiwi

    Kiwi New Member

    Joined:
    Jul 19, 2013
    Messages:
    312
    Likes Received:
    1,030
    I put a set of 53/10s into my Archtop and it is now a desert-island guitar.

    But since they're unobtainium now, if I had it to do over again, I'd put 57/08s or 58/15s into any older PRS hollowbody guitar.

    =K

    AaeCee and Mad like this.
