Another thread inspired this scheme. PRS five-way blade, but with three pickups. Here are two different ways to spin it...



ESW

New Member
Joined
Jul 6, 2020
Messages
19
Location
Massachusetts
Can anyone post a guide for swapping the volumes on a DGT? I change back and forth between other guitars quite a bit, and frequently end up adjusting the wrong volume knob due to the reversed positions.


pac90

Helix user
Joined
Jun 15, 2014
Messages
1,133
Is there enough room on the wiring to just switch them?

If so, use a shoelace or pipe-cleaner to pull off the knobs, unscrew the retaining nut and simply swap em.


ESW

New Member
Joined
Jul 6, 2020
Messages
19
Location
Massachusetts
Is there enough room on the wiring to just switch them?

If so, use a shoelace or pipe-cleaner to pull off the knobs, unscrew the retaining nut and simply swap em.

Great idea, but unfortunately there's not enough slack.


]-[@n$0Ma☩!©

Zombie Zero, DFZ
Joined
Aug 1, 1985
Messages
7,277
This one is for adding a vintage PRS pickup and push/pull tone pot to an SE One.



This one is for installing 4-lead PRS pickups in a guitar with McCarty switching. If my memory serves me, I made it for a set of 1985 reissue pickups.



This one is for adding a set of TV Jones PowerTrons to your SC (with coil splitting tone pots).



I made this is for converting a Tiny Terror from 110V to 220 or the other way around.



And this is how the wiring flows through your PRS. This x-ray was from a 1990 LE. I can't recall if this x-ray was of mine or one @JMintzer took of his. There were 2 SIG LE x-rays floating around.



Nice F Holes

New Member
Joined
Aug 29, 2020
Messages
311
Location
Hononlulu, HI
I have an SE HB Piezo with 58/15 S pickups. I want to add a push-pull master coil cut, and replace pups with 57/08s. I have 2 questions:

1) 58/15 S have 4 conductor, 57/08 have 3 conductor. Am I correct in thinking they're the same phase, with essentially the N- and S+ wires of 4 conductor pre-combined into single 'tap' wire? I ask because I want to make sure the pups stay in phase with the Piezo, which doesn't have a phase switch.

2) The stock setup has pup + and - soldered to the pup selector switch. If I ground the 'tap' wire at the tone pot it will sort of create a ground loop, except there will be the 1.1k or 2.2k resistor in the path. Is that better or worse than routing extra wire and grounding everything at the same point?

Here's the stock wiring harness (I know pups are not in proper orientation, didn't think about that for the pic.)


Last edited:

garrett

...
Joined
Jul 27, 2012
Messages
6,247
Location
The southern tip of Tampa Bay
I have an SE HB Piezo with 58/15 S pickups. I want to add a push-pull master coil cut, and replace pups with 57/08s. I have 2 questions:

1) 58/15 S have 4 conductor, 57/08 have 3 conductor. Am I correct in thinking they're the same phase, with essentially the N- and S+ wires of 4 conductor pre-combined into single 'tap' wire? I ask because I want to make sure the pups stay in phase with the Piezo, which doesn't have a phase switch.

2) The stock setup has pup + and - soldered to the pup selector switch. If I ground the 'tap' wire at the tone pot it will sort of create a ground loop, except there will be the 1.1k or 2.2k resistor in the path. Is that better or worse than routing extra wire and grounding everything at the same point?

Here's the stock wiring harness (I know pups are not in proper orientation, didn't think about that for the pic.)


1. You are correct about the tap wire. If the 57/08's end up being out of phase with the piezo, you can just reverse the hot/ground leads on the 57/08's.

2. The way you described is fine. Resistors connect to the body of the push/pull, then a wire runs from there to the back of the volume pot for ground continuity.


KevinK

New Member
Joined
Jul 18, 2018
Messages
45
Location
West Virginia
Got a question. I want to convert my SE three way blade switch/push pull pot to a 5-way blade switch. Other than the pricey 5-way PRS switch, what other switch would work?


mookyshoots

Mom always told me I was special
Joined
Jul 10, 2012
Messages
300
Location
The Land of Lincoln
Got a question. I want to convert my SE three way blade switch/push pull pot to a 5-way blade switch. Other than the pricey 5-way PRS switch, what other switch would work?

I did this a while back with a little twist. First, I personally love Mojotone's house brand switches. Great price and they spec them to be comparable to Oak Grigsby switches, which are generally considered the best. From there, I decided I had to have the PRS switch tip, so i very carefully filed both sides of the switch tip until the PRS tip would slide on. I put a tiny piece of masking tape on the end before sliding the tip on to make the fit a little tighter. Worked like a charm and looked great with the added bonus of coming in way under the cost of a PRS-branded switch.


KevinK

New Member
Joined
Jul 18, 2018
Messages
45
Location
West Virginia
Yeah I already have the switch tip. I can’t believe such a little part can change the feeling of a knife switch. Something I was never a fan of.


garrett

...
Joined
Jul 27, 2012
Messages
6,247
Location
The southern tip of Tampa Bay
Got a question. I want to convert my SE three way blade switch/push pull pot to a 5-way blade switch. Other than the pricey 5-way PRS switch, what other switch would work?

Standard super switch works fine. I particularly like the narrow version from Toneshapers because the normal ones are unnecessarily wide IMO.

Depending on what you want, you can also get one of the Schaller Megaswitch models that's easier to wire up for certain preset positions.


Musicman0616

New Member
Joined
May 31, 2021
Messages
3
Can someone help me with a push/pull wiring on the tone knob of a Brent Mason to get the two outer pickups at the same time. I want to keep switch and toggles as is just want to be able to get both Bridge and Neck pickup together.


garrett

...
Joined
Jul 27, 2012
Messages
6,247
Location
The southern tip of Tampa Bay
Can someone help me with a push/pull wiring on the tone knob of a Brent Mason to get the two outer pickups at the same time. I want to keep switch and toggles as is just want to be able to get both Bridge and Neck pickup together.

Here's a good resource on that: https://www.premierguitar.com/gear/...-for-your-strat-tele-les-paul-and-super-strat

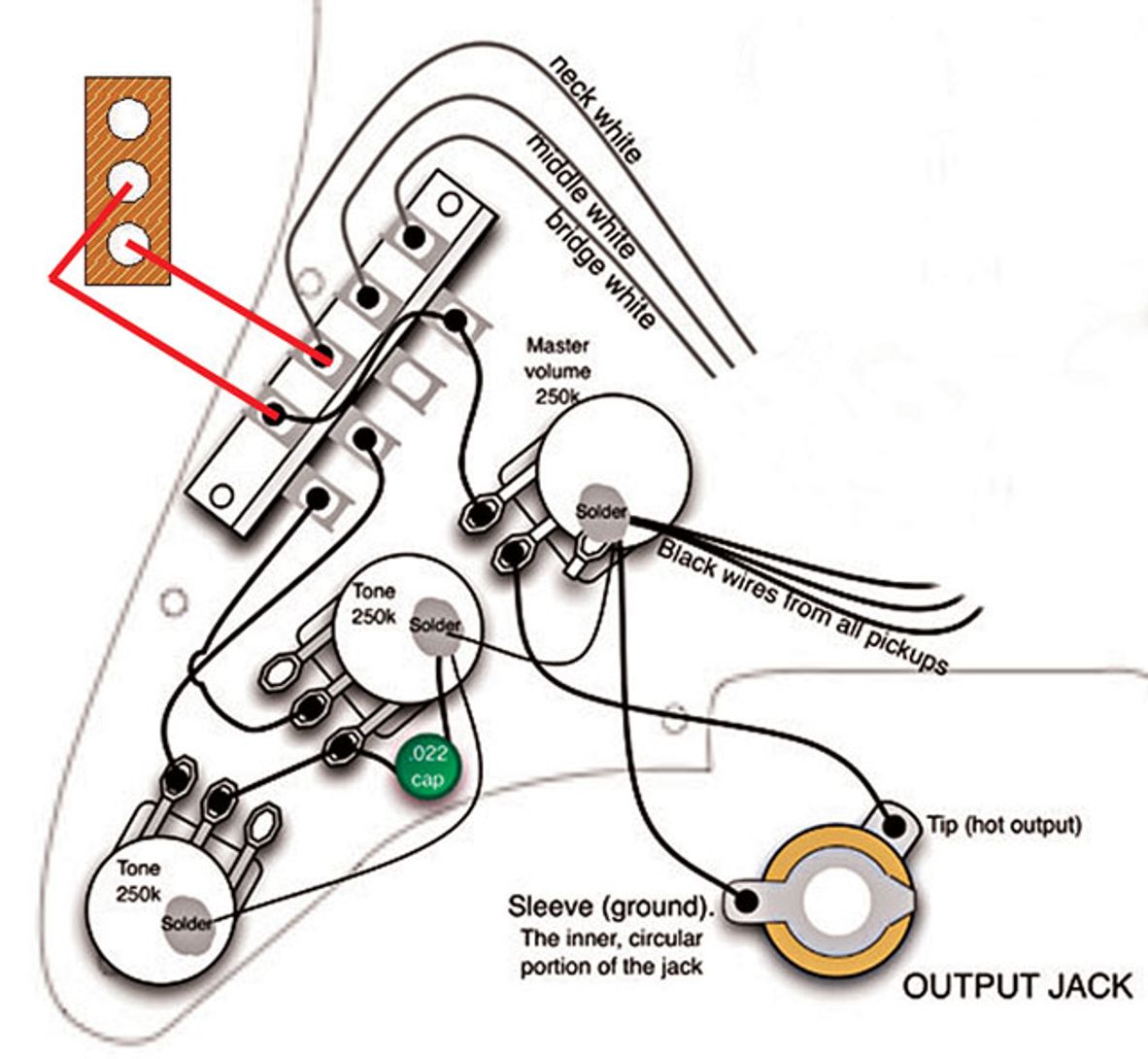

It's a common mod in the Strat world. On a PRS, you would just run the red wires shown below from the blade to one side of your push/pull.
